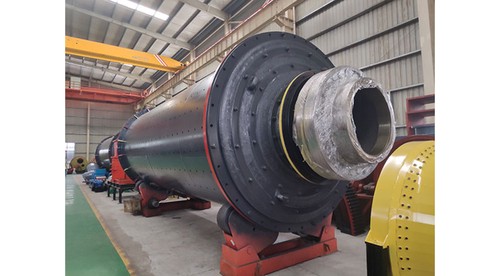

The rod mill is often used as a grinding material equipment in the beneficiation process. The ore materials with various hardness are more delicate after treatment by the rod mill. In recent years, it has also been used in the sand making industry of construction sand.
The rod mill is driven by a motor to drive the gear rotation or by a low-speed synchronous TV through the peripheral gear transmission to drive the cylinder rotation. The cylinder body is equipped with an appropriate grinding medium steel rod. The grinding medium generates centrifugal force and friction force with the rotation of the cylinder. After being raised to a certain height, it is thrown off. The material enters the barrel and is crushed by the grinding medium to achieve the crushing and crushing effect. The rod mill can change the discharge particle size by simple adjustment, which is not available in other grinding equipment.
PRODUCTS
PRODUCTS
Specification and type | Simple specifications | Cylinder speed ( r / min ) | Ball Loading ( t ) | Feeding force ( mm ) | Discharge strength ( mm ) | Yield ( t / h ) | Motor power ( kw ) |
Ф900×1800 | 918 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
Ф900×3000 | 930 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
Ф1200×2400 | 1224 | 36 | 3 | ≤25 | 0.075-0.4 | 1.5-4.8 | 30 |
Ф1200×3000 | 1230 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 |
Ф1200×4500 | 1245 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
Ф1500×3000 | 1530 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 |
Ф1500×4500 | 1545 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 |
Ф1500×5700 | 1557 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 |
Ф1800×3000 | 1830 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 |
Ф1830×4500 | 1845 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
Ф1830×6400 | 1864 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
Ф1830×7000 | 1870 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
Ф2100×3000 | 2130 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 |
Ф2100×4500 | 2145 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
Ф2100×7000 | 2170 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
Ф2200×4500 | 2245 | 21.5 | 35 | ≤25 | 0.074-0.4 | 9-45 | 280 |
Ф2200×6500 | 2265 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 280 |
Ф2200×7000 | 2270 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
Ф2200×7500 | 2275 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 |
Ф2400×3000 | 2430 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 |
Ф2400×4500 | 2445 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 |
Ф2700×4000 | 2740 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 |
Ф2700×4500 | 2745 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 |
Ф3200×4500 | 3245 | 18 | 65 | ≤25 | 0.074-0.4 | According to the process conditions. | 800 |
Ф3600×4500 | 3645 | 17 | 90 | ≤25 | 0.074-0.4 | According to the process conditions. | 850 |
Ф3600×6000 | 3660 | 17 | 110 | ≤25 | 0.074-0.4 | According to the process conditions. | 1250 |
Ф3600×8500 | 3685 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 |
Ф4000×5000 | 4050 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 |
Ф4000×6000 | 4060 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 |
Ф4000×6700 | 4067 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 |
Ф4500×6400 | 4564 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 |
Ф5030×6400 | 5064 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 |
Ф5030×8300 | 5083 | 14.4 | 226 | ≤25 | 0.074-0.4 | 88-500 | 3300 |
Ф5500×8500 | 5585 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 |
