1.Product introduction

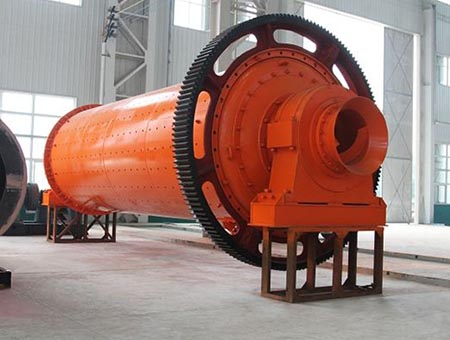

Horizontal ball mill is the key equipment for dry or wet grinding in iron ore, lead-zinc ore, copper ore, new building materials, refractory materials, fertilizer, black and non-ferrous metals, quartz sand and glass ceramics. The horizontal ball mill is relative to the vertical ball mill. In contrast, its performance is more stable, the operation is particularly simple, and the design is relatively novel. It has been favored by many users today. This paper introduces the equipment in detail from its structure, advantages, quality and price.
2.Working principle
The horizontal ball mill grinds and disperses under closed conditions to prevent solvent volatilization. The optimal design of the rotational speed of the machine tank can make the medium ball in the grinding tank form a tilting movement to disperse the material, obtain excellent grinding effect, and can grind the fine material quickly. The grinding barrel, inlet and outlet of the machine adopts one-time hot-cast wear-resistant polyurethane, which has the characteristics of high wear resistance, good sealing, low pollution, low noise, ultra-fineness, low consumption, convenient inlet and outlet, and is suitable for grinding and mixing high-purity materials.
PRODUCTS
PRODUCTS
Model | Cylinder speed （r/min） | Ball load （t） | Feeding strength （mm） | Discharge strength （mm） | Yield （t/h） | Moto power (kw) |
Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.4 | 1.5-4.8 | 30 |
Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 |
Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 |
Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 |
Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 |
Ф1800×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 |
Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 |
Ф2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
Ф2200×4500 | 21.5 | 35 | ≤25 | 0.074-0.4 | 9-45 | 280 |
Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 280 |
Ф2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 |
Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 |
Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 |
Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 |
Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 |
Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | According to the process conditions. | 800 |
Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | According to the process conditions. | 850 |
Ф3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | According to the process conditions. | 1250 |
Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 |
Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 |
Ф4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 |
Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 |
Ф4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 |
Ф5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 |
Ф5030×8300 | 14.4 | 226 | ≤25 | 0.074-0.4 | 88-500 | 3300 |
Ф5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 |
